A custom interior steel stair railing runs $6,000 to $14,000, and the homeowner signing that check rarely gets to watch how the parts are laid out. That blind spot ends up costing real money. Layout is where a railing either matches the drawing you approved or quietly drifts off it. Shops that get it right mark every part straight from your CAD file on an automated layout table, instead of chalking measurements onto raw steel by hand. The best predictor of a railing that fits your opening is not the showroom or the sales pitch, it is whether the shop marks parts by hand or straight from your file.
Hand Marked Layout Is Where Railings Drift Off Plan
Hand marking looks reasonable until you price the error. Ten years ago, layout meant a fabricator on his knees with a tape and a stick of soapstone, copying the architect’s drawing onto steel by eye. Today that drawing loads as a CAD file, and the shop marks every picket and mounting hole from that geometry. The mismatch we see most often is baluster spacing that reads fine on paper and wanders a quarter inch on the finished stair. Cutting corners on layout comes back to bite the homeowner.

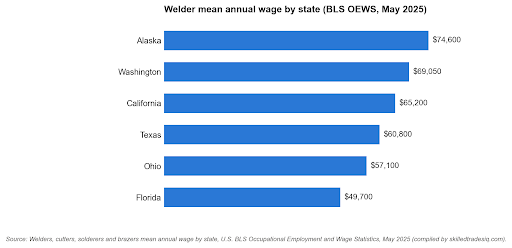

Skilled hands drive this work, and they are not cheap. The chart above shows welder mean annual wages by state from federal data, running from roughly $49,700 in Florida to about $74,600 in Alaska. Every hour a master welder spends over a tape measure is an hour not spent welding, which is why automated layout has spread. Even baluster spacing is a life-safety matter, not just an aesthetic one. The model residential code most jurisdictions adopt, quoted here by the City of Santa Barbara building department, requires gaps tight enough that a 4-inch sphere cannot pass between the balusters, so confirm the edition your own local building department enforces.
Ask How a Shop Turns Your Drawing Into Steel
Ask the shop to walk you from your approved drawing to a finished part. A good answer names the file format they accept, whether they mark from the CAD geometry or measure by hand, and who signs off before anyone cuts. The skilled-labor squeeze makes this more than a technicality. Fortune reported in July 2026 that JPMorgan Chase CEO Jamie Dimon told CNBC the country needs 300,000 electricians, welders and other skilled workers to rebuild shipbuilding over the next five to ten years. With experienced fabricators in short supply, the shops keeping quality high let a machine handle layout so a newer welder can still produce a part that matches the print.
Watch how they handle the parts you cannot see from the floor. Mounting tabs, the pitch of the rail as it follows the stringer, and the transition at the landing all depend on accurate layout. In practice, a shop that marks from the drawing hands you a layout to check against your own plans before a single cut is made. Ask to see it (most reputable shops will gladly show you).
Know What a Well Run Railing Job Looks Like
A well run railing job has a rhythm you can watch for from day one. In the first week, a good shop measures the actual stair opening, turns your design into a CAD drawing, and sends you a layout to approve before touching metal. By the third week, the approved geometry is marked, cut, and welded up as a single unit. Install usually lands within 30 days of that sign-off, and because the parts were marked from the drawing, the railing drops into the opening without field grinding to force a fit.
Good fabricators are also getting harder to book, and a Randstad analysis covered by Fortune found demand for welders rose 25% over the past three years as construction boomed. That scarcity is worth remembering when you compare two quotes, because the shop running an automated layout table is guarding your railing against the very labor gap driving those numbers. So do not shop on price alone. Pick the fabricator who marks parts from the drawing you signed, and ask to see that layout before they cut. Do that, and you give yourself the best odds of a custom railing that fits your stair the first time.
